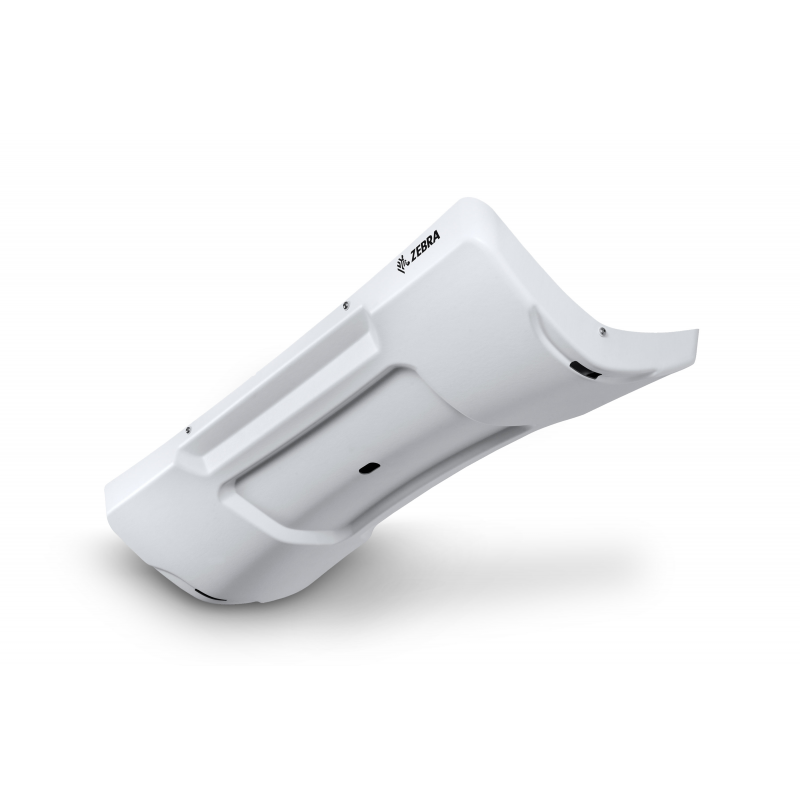

    Zebra - ST5500 Transition Reader
    Zebra - ST5500 Transition Reader

    Zebra - ST5500 Transition Reader

    €2,269.91
    Tax Excluded
    Delivery in 5-6 working days, except for unforeseen delays related to supplier or manufacturer availability.
    In Stock
    • Preconfigured ST5500 Transition RFID reader tracks moving items, indicating availability and enabling directional tracking
    • Operating frequency: 902 MHz to 928 MHz (maximum, supports countries using portions of this band), 865 MHz to 868 MHz (U.S. only)
    • Network connectivity: 10/100 BaseT Ethernet (RJ45) with PoE support; USB client (Type B), USB host port (Type A)
    Quantity :

    The Zebra ST5500 Transition RFID Reader operates effectively in virtually any area of a facility — from main building entry and exit points, including receiving and loading docks, to internal transition points such as the warehouse and production floor.

    It is specifically designed to meet the needs of challenging areas like backrooms and hallways, where metal, fluorescent lighting, and other factors can cause interference.

    This product is also ideal for aisles and call areas that require very narrow read zones.

    No additional components are needed, as this transition reader integrates both the reader and antennas into a single housing.

    The Zebra ST5500 Transition RFID Reader also tracks direction, providing an additional layer of business intelligence to better manage inventory and prevent lost sales, out-of-stock situations, theft, and unplanned downtime on the production floor.

    Moreover, with data collected over time, you can identify process gaps and improve inventory workflows.

    The ST5500 determines the direction a tag is moving through a portal, allowing it to be automatically removed from inventory when it moves from the stockroom to the sales floor.

    Zebra
    ST5500

    Data sheet

    Dimensions
    19.56 cm L x 14.99 cm W x 4.32 cm D
    Weight
    10.4 kg
    Operating Frequencies
    902 MHz – 928 MHz (Maximum, supports countries that use a part of this band), 865 MHz – 868 MHz US (only)
    Gigabit Ethernet network connectivity
    10 dBm to +31.5 dBm (POE+, 12V ~ 48V External DC, Universal 24V DC Power Supply); +10 dBm to +30.0 dBm (POE)
    Receive sensitivity (dBm)
    - 82 dBm
    Power Sources
    POE, POE+ or +24V DC (UL Approved) 12V-48VDC operation can be supported
    Air Interface Protocol
    EPCglobal UHF Class 1 Gen2, ISO 18000-6C
    Operating Temperature
    Up -20° C to +55° C
    Storage Temperature
    Up -40° C to +70° C
    Humidity
    95% non-condensing
    Operating system
    Linux
