The first Italian Rfid Store

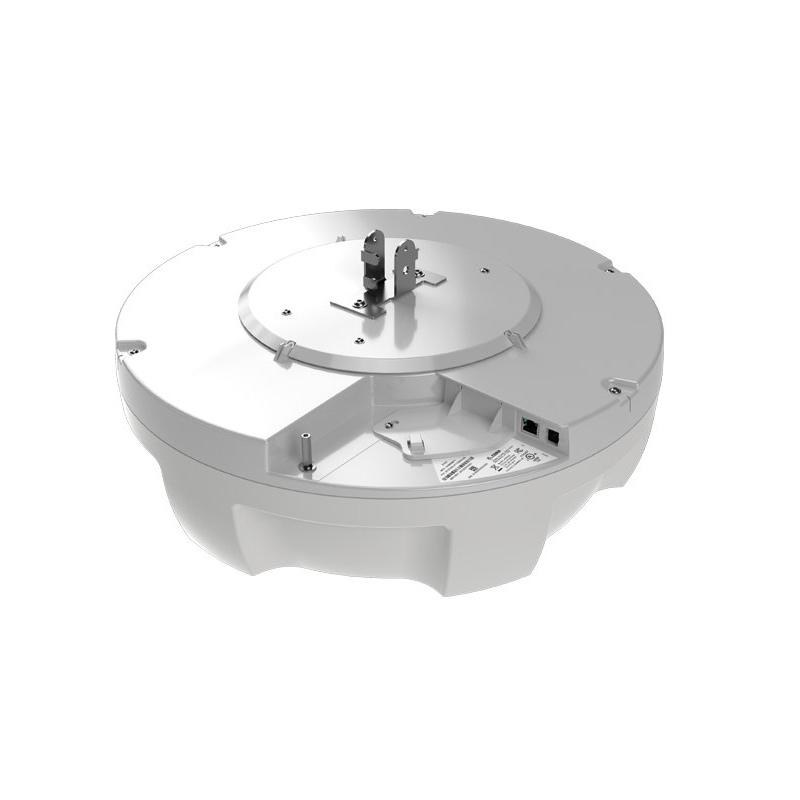

Zebra Reader - RTLS ATR7000
€3,472.56
Tax Excluded
Delivery in 5-6 working days, except for unforeseen delays related to supplier or manufacturer availability.
- Fixed UHF RFID reader with RTLS technology for real-time location of assets equipped with passive tags
- Operating frequency: 902-928 MHz (US and Canada) 865-868 MHz (EMEA and India)
- Network connectivity: 10/100 BaseT Ethernet (RJ45)
- Network protocol: EPC Global RFID Class 1 Gen 2/ISO 18000-63
The ATR7000 reader provides instant and accurate visibility of assets tagged with passive RFID, enabling continuous real-time location tracking.
Thanks to Zebra’s advanced technology, it is possible to optimize productivity, reduce manual scanning, and improve overall operational efficiency.
The ATR7000 RTLS is a fixed UHF RFID reader that delivers real-time location tracking with sub-meter accuracy (approximately 0.6 m), thanks to digital beam steering technology and wide-angle phased-array antennas with dual-mode coverage (circular and linear).
Ideal for logistics and industrial environments, it enables simultaneous tracking of passive tags even in fast motion (e.g., on forklifts), offering performance up to 10 times greater than competing readers.
In addition, the ATR7000 easily integrates with enterprise systems via dedicated APIs and supports flexible mounting (ceiling, pole, or VESA).
RTLS ATR7000
Data sheet
- Dimensions
- D:482,6 mm; H:161 mm
- Weight
- 5.03 kg
- Ingress Protection (IP)
- IP51
- Operating Frequencies
- 902-928 MHz (US and Canada) 865-868 MHz (EMEA and India)
- Gigabit Ethernet network connectivity
- 10/100 BaseT Ethernet (RJ45)
- Receive sensitivity (dBm)
- - 88 dBm
- Power Sources
- POE+ (802.3at) or AC-DC power supply rated for +24Vdc, 3.25 A
- Air Interface Protocol
- EPCglobal UHF RFID Class 1 Gen2/ISO 18000-63
- Operating Temperature
- Up -20° C to +55° C
- Storage Temperature
- Up -40° C to +70° C
- Humidity
- 5-95% non-condensing
- Operating system
- Linux
- Installation Method
- Direct attach (pole mount) or VESA 75 or VESA 100
