    Xminnov - Sensor Tag for Door Open/Close Sensor - RFID UHF
    Xminnov - Sensor Tag for Door Open/Close Sensor - RFID UHF
    Xminnov - Sensor Tag for Door Open/Close Sensor - RFID UHF
    Xminnov - Sensor Tag for Door Open/Close Sensor - RFID UHF
    Xminnov - Sensor Tag for Door Open/Close Sensor - RFID UHF
    Xminnov - Sensor Tag for Door Open/Close Sensor - RFID UHF

    Xminnov - Sensor Tag for Door Open/Close Sensor - RFID UHF

    REQUEST A QUOTE

    • Tag Dimension: 110x30x15mm (Copper Antenna Size: 86*18mm)
    • Chip: CAB1/VBL7 ( Protocol: ISO18000-6C GEN2 V2)
    • Memory: TID/UID 112bit+ EPC/Block 192bit+ User File_0 with 512bit of data+ Reserve 112bit
    Quantity :

    Magnetic cabinet door open/close sensoring RFID tag is a specialized RFID tag that incorporates magnetic sensors to detect the open or closed status of a cabinet door (or any similar object) and transmit this information using RFID technology.

    These tags are designed for applications where monitoring the status of cabinet doors or other closures is essential.

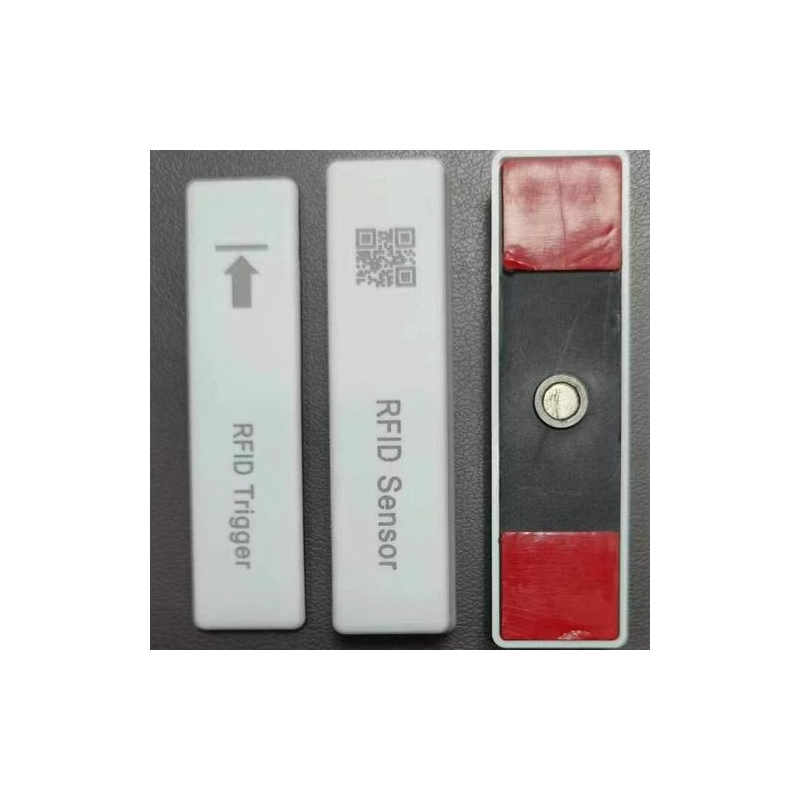

    The RFID sensor tag consists of two separate parts: the sensor and the trigger. When you hold the sensor and the trigger together and then separate them, the sensor detects changes in the magnetic field.

    In fact, the tag is equipped with magnetic sensors or reed switches.

    These sensors can detect the presence or absence of a magnetic field, which changes when a magnetic sensor for doors is opened or closed. When the door is closed, the magnetic field keeps the sensors in a specific state.

    When the door is opened, the magnetic field changes and the sensors detect this change. The RFID tag communicates this change in state (open or closed) and temperature to an RFID reader wirelessly via radio waves.

    The reader can then collect and process this data.

    XMINNOV
    RD230145B

    Data sheet

    Dimensions
    110x30x15mm (Copper Antenna Size: 86x18mm)
    Chip
    CAB1/VBL7 ( Protocol: ISO18000-6C GEN2 V2)
    Memory
    TID/UID 112bit+ EPC/Block 192bit+ User File_0 with 512bit of data+ Reserve 112bit
    Operating Frequencies
    865-868Mhz
    Reading Distance
    600cm On metal
    Installation Method
    Adhesive & Magnetic

    Specific References

    Xminnov - Sensor Tag for Door Open/Close Sensor - RFID UHF
