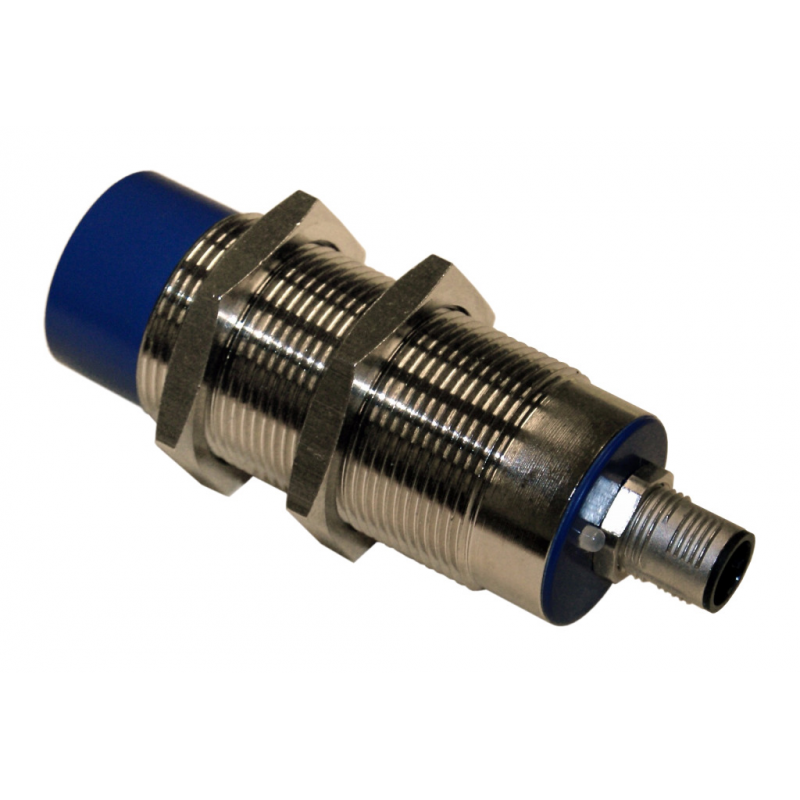

SOLTEC Bluebox M30 UHF
€510.00
Tax Excluded
Delivery in 5-6 working days, except for unforeseen delays related to supplier or manufacturer availability.
IP65 industrial reader for reading/writing RFID, UHF (840 MHz – 960 MHz).
Industrial RFID reading/writing device with working frequency in the UHF band.
It communicates with a 'host' system (typically a PC or a PLC) via an RS232 or RS485 serial line, and acts as a link through a series of commands between the latter and the transponder present in the area of influence of the antenna.
General characteristics:
- Integrated antenna
- RS232 or RS485 or Can Bus interface
- Firmware upgradeable
- A two-color signaling LED
- Test and configuration software
- ANSI C software library (*.dll, *.h, *.def, *.libfiles)
- Product certified according to current standards
Applications :
- Access control
- Payment systems
- Industrial automation / parking lots
- Logistics
5224U
Data sheet
- Type
- UHF RFID
- length
- 90.65 mm
- Diameter
- 30 mm
- Ingress Protection (IP)
- IP 65
- Transmit power (max, dBm)
- Max 500mW (27dBm), 1dB step software programmable
- Operating Temperature
- -20°C to +55°C
- Storage Temperature
- -40°C to +85°C
- Humidity
- Up to 95%, non condensing
- Interfaces
- RS232, RS485, CAN bus
- Reading Distance
- 40cm (Reading distance depends on tag type, antenna and environmental conditions)
Specific References
