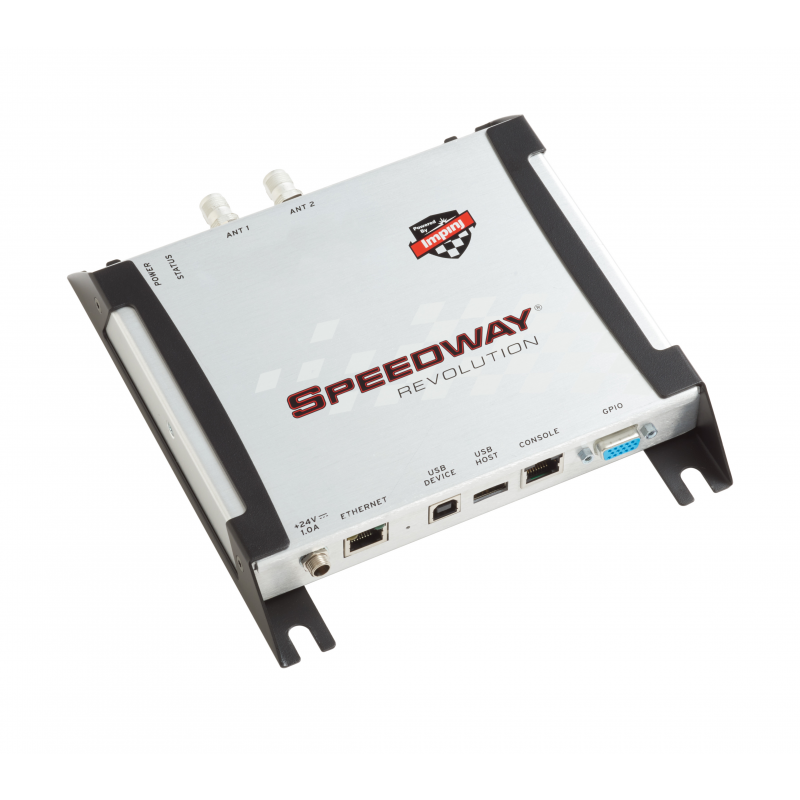

Impinj Reader SpeedWay R220 (EU1)
€1,303.00
Tax Excluded
Reader SpeedWay R220 EPC global UHF Class 1 Gen 2 / ISO 18000-6C
The Speedway Revolution RFID R220 reader offers the performance, quality and reliability needed for maximum efficiency in logistics, tracking and asset management applications.
Antennas: N. 2 high performance, monostatic antenna ports optimized for Impinj reader antennas (RP TNC).
Transmit Power:
- +10.0 to +30.0 dBm (PoE)
- +10.0 to +32.5 dBm (external universal power supply)
Operating Temperature: -20°C to +50°C
Mounting: Holes for wall mounting
Environmental Sealing: IEC IP52
Power Sources:
- Power over Ethernet (PoE) IEEE 802.3af
- +24 VDC @ 800 mA via external universal power supply with locking connector - sold separately
IPJ-REV-R220-EU12M1
Data sheet
- Dimensions
- 19 x 17.5 x 3 cm
- Weight
- 700 gr
- Transmit power (max, dBm)
- 32,5
- Antenna ports
- 2
- Read zones (max)
- 32
- Read rate (max per-second)
- 1,100
- General-purpose input/output (GPIO) connector
- Accessory
- Receive sensitivity (dBm)
- -84
- Processor speed (GHz)
- 0,4 (single core)
- Random-access memory (MB)
- 256
- Custom-application partition (CAP) size (MB)
- 32
- Support for USB peripherals (slots)
- 1
- Power Sources
- All regions: AC-DC adapter All regions except EU2: IEEE 802.3af PoE EU2: IEEE 802.3at PoE+
